How to Troubleshoot the ImagePullBackOff Error

The ImagePullBackOff state occurs when Kubernetes continuously fails to fetch the container image for a pod. When a pod is initiated, Kubernetes tries to download the image from its associated registry. If it fails to retrieve this image, Kubernetes emits an ErrImagePull event at first and proceeds to continue pulling the image with increasing delays between each attempt, known as the BackOff period.

Top Causes of ImagePullBackOff Error

Here's a detailed breakdown of the most common causes for ImagePullBackOff in Kubernetes:

1. Incorrect Image Name or Tag

One of the most frequent causes of ImagePullBackOff is misspelling the image name or specifying an incorrect tag.

• Mismatched Image Names or Tags: Image names and tags must match an available resource in the container registry, or Kubernetes cannot fetch these images. For example, using nginy:1.14.2 instead of nginx:1.14.2 will cause the image pull operation to fail. Ensure image names and tags in your pod's YAML manifest point to the right resource to avoid these situations.

• Outdated Tags: Referencing deprecated image tags causes ImagePullBackOff errors, as Kubernetes won't be able to match an image using an outdated tag. Always check the container registry before deploying your pods to ensure any tags you use are valid.

Blink Automation: Troubleshoot Pod with "ImagePullBackOff" Error

Blink + Kubernetes

Try This Automation

2. Authentication Issues with Private Registries

Kubernetes requires authentication credentials when fetching images from a private registry. If you fail to provide the correct credentials, Kubernetes cannot access the registry, leading to an ImagePullBackOff state.

• Missing imagePullSecrets: You have to use imagePullSecrets to supply provide the authentication secret. To do this, you can create a Kubernetes secret with the registry credentials and reference it in your pod spec.

imagePullSecrets:- name: secret-name

• Access Permissions: A lack of access permission can result in an ImagePullBackOff error even if you provide the correct credentials. For example, on Amazon Elastic Container Registry (ECR), you must ensure that the IAM role associated with the Kubernetes node has the necessary permissions to fetch the container image into the cluster node.

Double-check your registry’s access control settings to confirm that the account linked to your imagePullSecrets can access the required images.

3. Network Connectivity Problems

Network issues between the Kubernetes cluster and the container registry can trigger ImagePullBackOff. Kubernetes will fail to pull the image if the node cannot reach the registry due to network configurations, firewalls, or DNS issues. You can check the network connectivity of a cluster node by running:

curl [registry_url]

Ensure firewalls allow outgoing requests to the registry on the required port (e.g., port 443 for Docker Hub).

4. Unavailable or Corrupt Image

Your Kubernetes deployments will encounter ImagePullBackOff if the image is no longer available in the registry or has become corrupted. These may surface when:

• The image has been deleted: The maintainers may abandon the development, or someone may accidentally delete the image. In both cases,  Kubernetes cannot fetch it, resulting in an ImagePullBackOff error.

• Tag mismanagement: Removing older image tags or versions makes them unavailable for future pulls. The deployment will fail if your pod tries to pull a deprecated or removed tag.

• Corrupt Image: Images can corrupt if the push operation to the registry is interrupted or there are issues during the build. If your deployment references a corrupt image, it will fail with ImagePullBackOff.

You should check the registry beforehand to ensure the image version exists and the tag is not retired.

Summary of Top Causes and Troubleshooting Steps

How to Diagnose ImagePullBackOff Errors

When a pod enters ImagePullBackOff, the first step is to diagnose the issue by gathering information about the pod and its environment. Here are a few key diagnostic steps.

Check Pod Status

You can use the `kubectl get pods` command to identify the pods in an ImagePullBackOff state. This command will display the status of all pods in your cluster, including those stuck in ImagePullBackOff.

kubectl get pods‍NAME        READY   STATUS             RESTARTS   AGEyour-app      0/1     ImagePullBackOff   0          5m

The STATUS field indicates that Kubernetes can't pull the image, and the READY field reveals that the pod has zero running instances.

Analyze Pod Events

Use the kubectl describe pod command to get detailed information on why the image pull failed. This provides a breakdown of the pod's events and can help reveal specific error messages related to the image pull.

kubectl describe pod [pod_name]

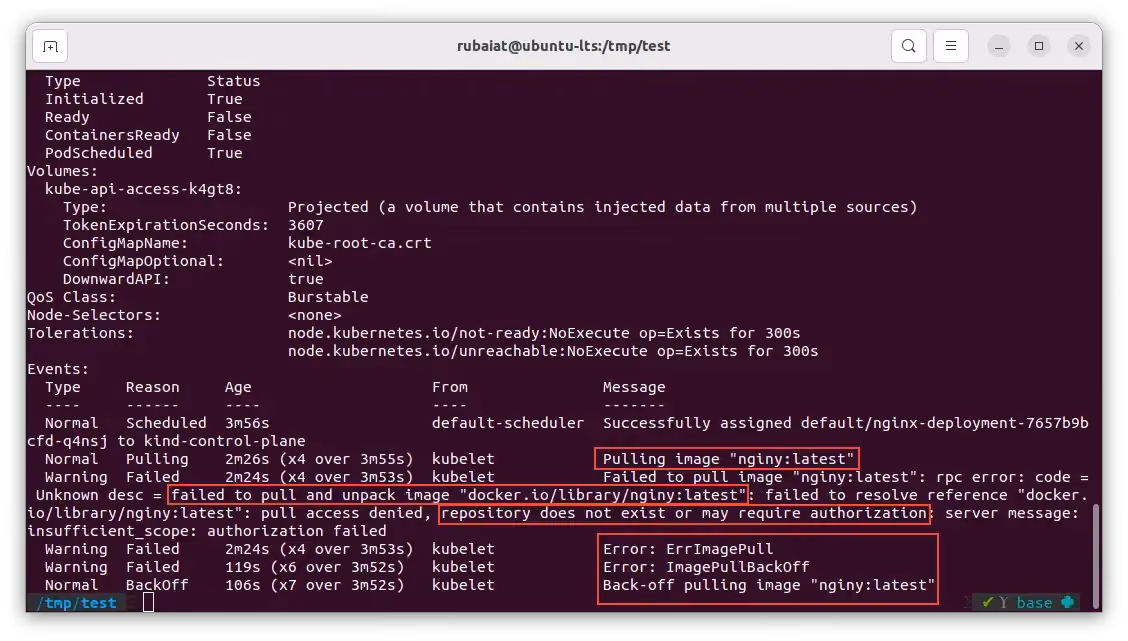

If you scroll down to the Events section, you may find clues such as:

• Repository does not exist: The image name, version, or tag is incorrect or retired.
• Authorization failed: Kubernetes failed to authenticate with a private registry.
• Network timeout: The cluster cannot connect to the registry due to network issues.

Verify Docker Daemon Logs on the Node

If the cause of your ImagePullBackOff error isn't apparent from the pod events, you can inspect the Docker daemon logs on the node where the pod is trying to run. These logs provide deeper insights into node-level issues affecting image pulls, such as connectivity problems or Docker service failures.

journalctl -u docker

Common errors include:

• no space left on device – indicating that the node lacks sufficient disk space.
• pull access denied – suggesting an authentication failure with a private registry.
• timeout while trying to pull – often pointing to network issues or firewall blocks.

By cross-referencing kubelet logs with Docker logs, you can quickly identify whether the problem lies in Kubernetes orchestration or container runtime failures, enabling faster resolution of the ImagePullBackOff error.

Analyze Kubelet Logs for ImagePullBackOff Errors

Kubelet logs provide a window into Kubernetes’ attempts to manage pods and pull container images. When troubleshooting an ImagePullBackOff error, start here to uncover network issues, authentication failures, or misconfigurations at the orchestration level. You can access kubelet logs on a node with:

journalctl -u kubelet

Look for entries like:

• Failed to pull image – indicates that the kubelet couldn't retrieve the image.
• ErrImagePull – a general image pull error, often due to a typo or network issue.

Focus on messages that mention timeouts, failed authentications, or image not found errors. These clues will help you narrow down the root cause, whether it's a connectivity issue or a registry misconfiguration.

Effective Troubleshooting Steps for ImagePullBackOff

Once you've diagnosed the root cause of the ImagePullBackOff error, the next step is to troubleshoot and resolve the issue. Below are some practical steps to fix common problems with image pulling in Kubernetes.

1. Fix Issues With Image Name or Tag

One of the most common causes of ImagePullBackOff is using an incorrect image name or tag. To correct this, update the image definition in your pod's YAML file. Verify the image name by manually pulling it from the registry when unsure.

docker pull [image_name]:[tag]

Once the name and tag are confirmed, update the YAML file and ensure the image name and tag are correct.

containers:  - name: your-app    image: nginx:1.14.2

After updating, apply the changes so that Kubernetes can pull the correct image successfully.

kubectl apply -f [your_yaml_file].yaml

2. Ensure Image Availability

Even if the image name is correct, the image might not exist in the registry, or maintainers may have removed it, especially if you're using a specific version or tag.

You can verify it by going to the container registry and checking if the image and tag exist. If it's a private registry, log in and confirm the image's availability using the registry's UI or CLI.

Access policies can also change in some cases, especially with private registries. So, when using an image from such a registry, ensure your user account has the necessary permissions to access the image. Also, check image availability in the registry to see if the image is private and was recently moved or made unavailable to your account.

3. Fix Registry Access Issues

If you've identified authentication issues behind your ImagePullBackOff issue, you have to create or update the authentication secret via imagePullSecrets.

First, use the command below to ensure you have created a Kubernetes secret for your private registry credentials.

kubectl create secret docker-registry your-secret \  --docker-server=[your_registry_url] \  --docker-username=[your_username] \  --docker-password=[your_password] \  --docker-email=[your_email]

Replace the corresponding fields with your specific registry's URL, account credentials, and email address. Then, reference this secret in your pod's deployment configuration.

imagePullSecrets:- name: your-secret

After adding the secret, reapply your pod or deployment configuration using the following command.

kubectl apply -f [your_yaml_file].yaml

4. Check Network Access

Network issues can prevent Kubernetes from pulling images. Verifying network connectivity between your Kubernetes cluster nodes and the registry is a critical troubleshooting step.

• Check HTTP Access: You can use commands like ping and curl to test network connectivity.

ping [registry_url]

If the ping command fails (e.g., Request timed out), there may be a network issue, DNS resolution failure, or firewall blocking traffic between the node and the registry.

• Check HTTPS Access: Most public registries, like Docker Hub, don't respond to ICMP packets (which ping uses). Instead, they communicate using HTTPS. Use curl to check network connectivity for these public registries.

curl -I https://[registry_url]

A successful connection will return HTTP status codes like 200 OK. If you get an error message like "Couldn't connect to host, Connection timed out, or Failed to resolve host," it indicates that a network issue is preventing the node from accessing the registry.

• Firewall Issues: The reason for this can be a firewall issue. You can check if the firewall rules on your Kubernetes nodes allow outbound connections to the registry on port 443 (HTTPS).

• DNS Issues: Check your DNS configuration if the cluster node fails to resolve DNS names to IP addresses. If you are using an internal registry, you may need to update DNS settings or add custom DNS entries.

• Proxy Settings: If your cluster uses a proxy, ensure your nodes are configured with the correct proxy settings to allow outbound connections to the registry.

5. Retry the Pull with Pod Deletion

If everything else fails to resolve your Kubernetes ImagePullBackOff error, you can try deleting the pod and redeploying it. This will ensure Kubernetes starts the pod lifecycle from scratch, triggering a fresh image pull event.

You can delete the stuck pod using:

kubectl delete pod [pod_name]

And redeploy it using:

kubectl apply -f [your_yaml_file].yaml

Deleting and recreating the pod this way will resolve your image-pulling problem if you've already addressed the underlying issue (problem with registry access or image tag).

Real-World Example: Resolving ImagePullBackOff with Logs

In this example, we'll walk through how a developer can use kubelet and Docker logs to quickly diagnose and resolve an ImagePullBackOff error caused by authentication failure with a private registry.

Step 1: Analyze Kubelet Logs for Clues

First, the developer checks the kubelet logs to identify the error:

journalctl -u kubelet

The logs show:

Failed to pull image "private-registry.com/my-app:v2.0": pull access denied

This indicates an issue with registry access, likely due to missing authentication credentials.

Step 2: Check Docker Runtime Logs for More Details

Next, the Docker logs are reviewed to confirm the issue:

journalctl -u docker

This indicates an issue with registry access, likely due to missing authentication credentials.

The logs reveal:

pull access denied, authentication required

This confirms that the container runtime cannot authenticate with the private registry.

Step 3: Fix the Authentication Issue

To resolve this, the developer creates a secret with the correct credentials for the private registry:

kubectl create secret docker-registry regcred \  --docker-server=private-registry.com \  --docker-username=[username] \  --docker-password=[password] \  --docker-email=[email]

After updating the pod configuration to include the secret, the pod successfully starts.

This straightforward process demonstrates how using kubelet and Docker logs helps pinpoint the cause of ImagePullBackOff errors and leads to a quick resolution.

Preventing ImagePullBackOff Errors: Best Practices

By adopting a few best practices for image management, versioning, and monitoring, you can prevent ImagePullBackOff from disrupting your Kubernetes workload.

1. Use Image Digests for Consistency

When pulling container images, you can use image digests instead of tags for added reliability. Tags are mutable references that can change over time. Digests, on the other hand, are immutable and guarantee that Kubernetes will always pull the same image, eliminating the risk of unexpected changes.

Every container image has a unique SHA256 digest, a cryptographic hash that ensures the image's integrity. Instead of using a tag, specify the digest in your YAML file.

containers:  - name: your-app    image: nginx@sha256:5fe16329d68b57e4a22a61b1c743b146b1a5ac37d124e99845d7d5db69e0e580

By using digests, you lock in a specific image version, improving reliability and consistency across your deployments.

2. Tag Management and Versioning

Don't use the latest tag in production environments. This tag is mutable, meaning it can point to different versions of the image over time. Using this tag makes version tracking difficult and can lead to unexpected behavior if the image behind the latest tag changes.

Instead of using latest, implement a structured versioning strategy for your images, such as semantic versioning (1.0.0, 1.0.1, etc.). This will give you more control over version control and help you track changes more effectively.

containers:  - name: your-app    image: your-app:1.0.1

Using specific tags for each version ensures that Kubernetes pulls the correct image version for every deployment, making rollbacks and updates much easier to manage.

You can also leverage CI/CD pipelines to automate the tagging process. Whenever you build a new version of your application, assign it a new version tag and update your deployment manifests accordingly. This process can keep your deployment strategy clean and predictable.

3. Monitor and Set Alerts for Image Pull Issues

Effective monitoring can catch many ImagePullBackOff-related issues, such as network connectivity problems, registry access failures, or outdated images before they escalate. Leveraging alerts and monitoring tools will enable you to react quickly and resolve ImagePullBackOff issues as soon as they occur, reducing downtime and preventing escalation.

• Monitoring Tools: Kubernetes emits events related to image pulls, which can be scraped by monitoring tools and used to trigger alerts. Track these metrics using tools like Prometheus, Grafana, or a cloud-based monitoring solution like Datadog or New Relic.

• Alerts: Configure alerts for any image pull issues so your team knows as soon as a problem occurs. For example, you can set up an alert using Prometheus to notify you if any pod has been stuck in an ImagePullBackOff state for over 5 minutes.

alert: ImagePullBackOffexpr: kube_pod_container_status_waiting_reason{reason="ImagePullBackOff"} > 0for: 5mlabels:  severity: criticalannotations:  summary: "Pod {{ $labels.pod }} is in ImagePullBackOff state"  description: "Pod {{ $labels.pod }} has been unable to pull its image for over 5 minutes."

By monitoring and setting alerts for image pull issues, you can identify and resolve problems quickly before they affect your application's performance.

Troubleshoot Faster with Blink

You might have solved your problem quickly or ended up down a research rabbit hole. When you create a free Blink account, you can manage your Kubernetes troubleshooting in one place with all the commands at your fingertips to get the information you need.

This automation in the Blink library enables you to quickly get the details you need to troubleshoot a given Pod in a namespace.

When the automation runs, it does the following things:

• Gets the pod status.
• Gets the pod details.
• Gets the container logs.
• Gets events related to the pod.

By running this single automation, you skip all kubectl commands and manual troubleshooting and get the necessary information to resolve the ImagePullBackOff error in one easily manageable interface.

Conclusion

The ImagePullBackOff error usually comes down to a few simple issues: incorrect image tags, registry access problems, or network issues. By checking kubelet and Docker logs, you can pinpoint the cause and fix it quickly. Using best practices like version control with image digests and staying consistent with your configurations can help avoid these issues. The key is efficient troubleshooting and proactive measures to keep your Kubernetes deployments running smoothly.

FAQs

What is the difference between ImagePullBackOff and ErrImagePull?

ErrImagePull occurs on the first failed attempt to pull an image. If the issue persists, Kubernetes switches the pod status to ImagePullBackOff, indicating it is retrying with increasing back-off times between attempts.

How do I fix ImagePullBackOff with private registries?

Make sure your pod is using the correct imagePullSecrets for authentication with the private registry. Create the secret and reference it in your pod's YAML configuration to resolve the issue.

What logs should I check for ImagePullBackOff errors?

Check kubelet logs (journalctl -u kubelet) for Kubernetes orchestration errors, and Docker runtime logs (journalctl -u docker) for container-level issues, such as network or authentication problems.

Can disk space issues cause ImagePullBackOff?

Yes, insufficient disk space on the node can prevent image pulls. Run df -h on the node to check available storage and free up space if needed.

How can I monitor and prevent ImagePullBackOff errors?

Set up tools like Prometheus and Grafana to monitor pod statuses. You can configure alerts for pods stuck in ImagePullBackOff, enabling proactive troubleshooting before the issue worsens.
